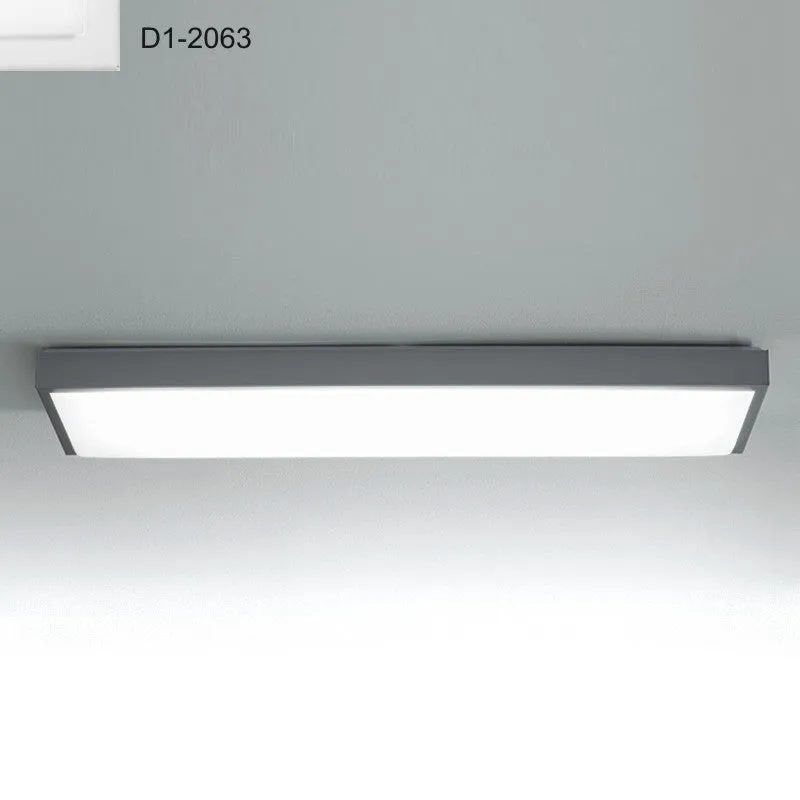

Product: D12063, White, L 901 mm x W 222 mm x H 83 mm — Datasheet ✓
Short description: Flat R - Surface - Ceiling / Wall - 901mm / 35 1/2" x 222mm / 8 3/4" - 2 x 39W Fluorescent - G5 - T5 - Dimmable - White.

---

European Quality. Discounted prices. In-stock products to illuminate your space. Canada and the United States. Lighting experts available.
Accessible and affordable lighting fixtures that were recently in the Zaneen program. Massive savings. While quantities last!

---

General
Series: Flat R
Division: Design
Mounting Type: Surface
Mounting Location: Ceiling

---

Physical
Shape: Rectangle
Length (mm): 901
Length (in): 35 1/2
Width (mm): 222
Width (in): 3 1/4
Height (in): 3 1/4
Height (mm): 83
Extension (mm): 51
Extension (in): 2.0
Light Distribution: Downlight
Weight (kg): 4.55
Weight (lbs): 10
Diffuser: Opal White Satin Acrylic
Fixture Finish: WHI
Fixture Material: Aluminum

---

Electrical
Number of Lamps: 2
Lamp Type: T5 Fluorescent
Bulb Included: Bulb Not Included
Total Output Wattage (W): 78
Max. Wattage Per Lamp (W): 39
Lamp Base: G5
Dimming: Phase Dimming (120Vac Only)
Driver Included: Yes
Driver Location: Integrated
Driver Type: Ballast - Universal
Input Voltage (V): 120 - 277
Upon Request: (Not included - see components) Integral: Lutron (phase dimming)

---

Ratings and Certifications
Certified By: CSA Certified to UL and CSA Standards
IP rating: IP20
