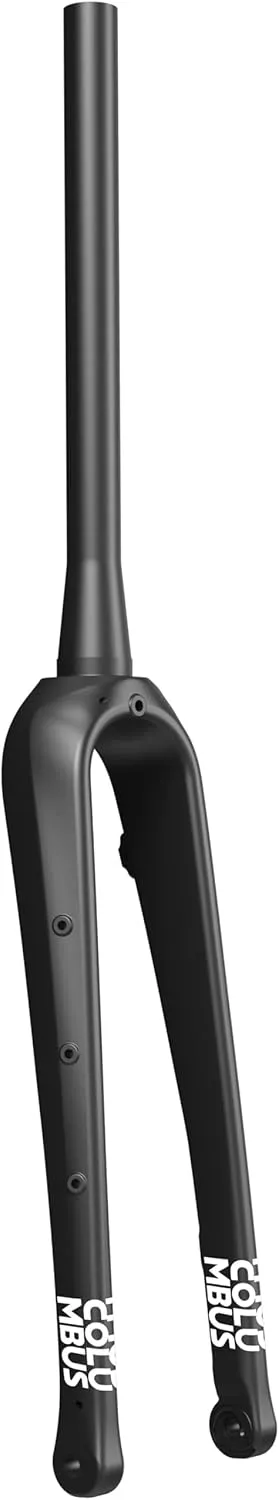

Columbus Futura Cross Plus Disc Brake Carbon Fork

The Futura Cross model completes the disc brake range in what Columbus offer. The famous lines of the Futura Fork have been widened and lengthened to allow riders to mount larger and knobby tyres. The Cross fork now pushes that mark and has been optimised for bike travel.

The most prominent and immediately recognisable feature on each of the Cross carbon fork blades are the famous eyelets for bikepacking. Compatible with the most current lightweight luggage carrier systems these eyelets guarantee a wide range of different bag configurations. From a light 'performance' trip to a big tour, even for self-sufficient adventures, on and off-road, with a surprising load capability.

Additionally, to better meet explorer's needs, Cross also introduces an internal cable housing system for hubs with integrated dynamos. Thanks to this feature, it is now possible to connect the most up-to date hubs to your onboard electrical lighting, navigation and energy storage systems.

Moreover, the internal cable housing ensures ideal protection from bad weather and accidental collisions, guaranteeing it's incredibly 'clean' both in terms of aesthetics and use. The Multi-Rake system, already widely appreciated on the Futura Cross, completes this technology package. This system allows for useful fork offset adjustments, based on the chosen wheel diameter and tyre width, as well a variety of load and reactivity needs.

Technical Specifications

• T700S and HFM Carbon fibre monocoque
• Finish: Columbus painted
• Steerer: Tapered 1 1/8" - 1 1/2"
• Steerer length: 350mm
• Axle to crown length: 392mm
• Rake: 47/52mm
• Crown diameter: 56mm
• Tyre clearance: up to 700x47mm / 27.5"x2.1"
• Axle standard: Columbus 12mm (included)
• Disc clamp: Flat mount - up to 160mm rotor
• Routing: Internal for dynamo hubs
• Eyelets: for fender and anything-cage
• Max load: 3kg per side using all three bolts
• Weight: 535 grams ( /-10g)
